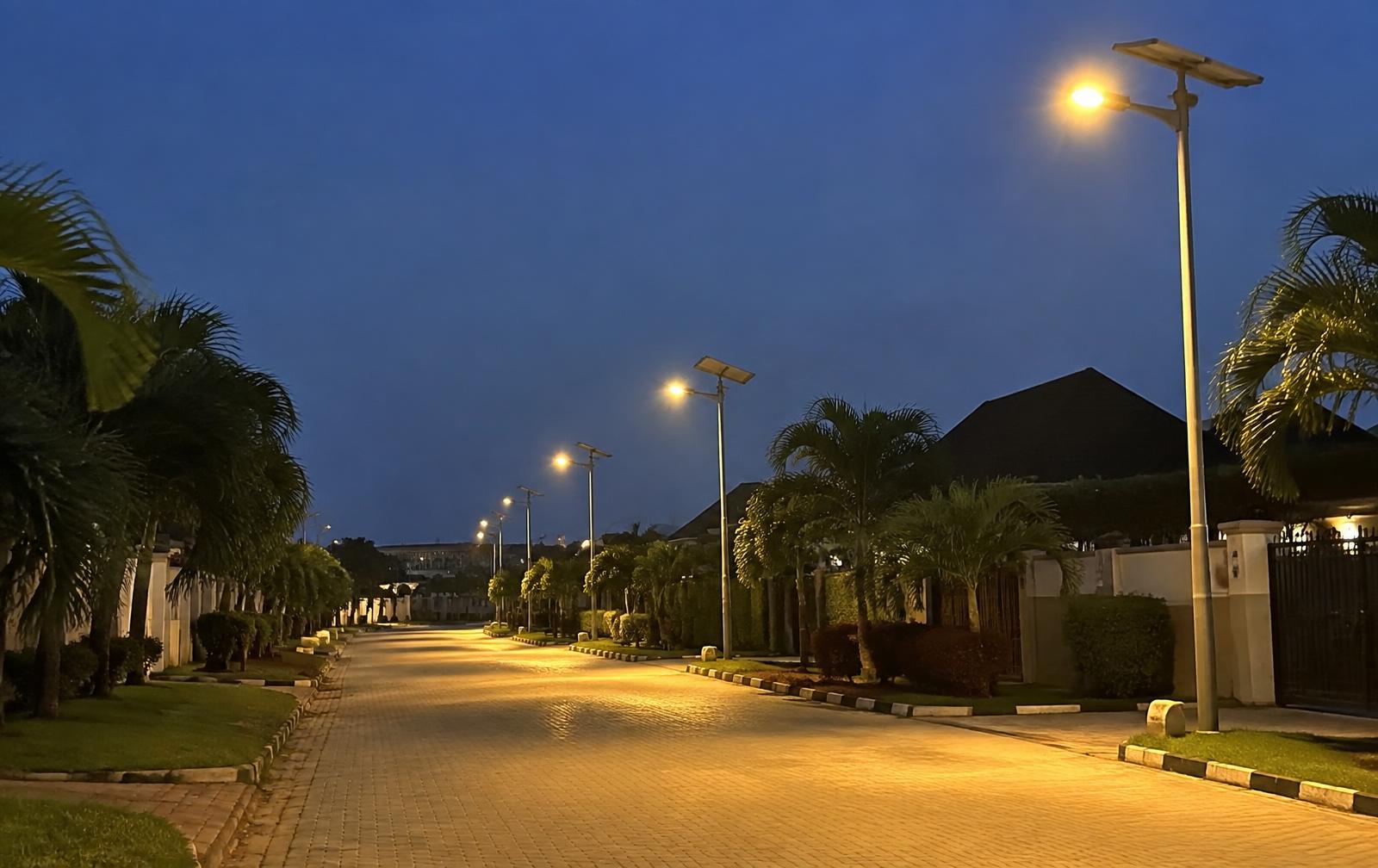

Solar street lighting
Light for roads, estates and communities, with no grid connection
Solar street lights are specified by the road they light, the height of the pole and how many hours of light you need after dark. Tell us the site and we will specify the units.
Three types
All-in-One
20W to 120W; most units are 80W or less
Panel, battery, LED and controller in one sealed housing. One bracket on the pole and 30 to 60 minutes to fit.
Best for: Side streets, estates, compounds, walkways and parking
Available on request
Split Type
60W to 300W
Separate pole-top panel and battery with a lamp head. Larger panel and battery, with tilt set independently.
Best for: Main roads, highways, campuses and long runs
Available on request
All-in-Two
30W to 100W
A semi-integrated design that sits between the two.
Best for: Roads that need more panel area than an all-in-one
Available on request
Sizing guide
A rough guide only. Final wattage depends on spacing, pole height, the lighting level you need and how long the lights must run overnight.
| Application | Pole height | Typical wattage |
|---|---|---|
| Garden path or walkway | 3 to 4 m | 20W to 30W |
| Residential side street | 4 to 6 m | 30W to 50W |
| Parking lot | 5 to 8 m | 50W to 80W |
| Urban secondary road | 6 to 8 m | 60W to 100W |
| Main urban road | 8 to 10 m | 100W to 150W |
| Highway or arterial road | 10 to 15 m | 150W to 200W |
What we always specify
- LiFePO4 battery
- Monocrystalline panel
- MPPT controller
- Light sensor plus radar motion sensor with time dimming
- IP65 or better
- LED efficacy of 160 lm/W or more
- Warranty of at least 3 years
Tell us about the road or the estate
Send the length of the run, the pole height if you know it and how many hours of light you need. We will come back with a specification and a plan.
